DS80/OS80
Lucoled DS80 offers a high quality and efficient back lighting solution for double sided lightboxes and pylons.
Lucoled OS80 offers a high quality and efficient back lighting solution for single sided lightboxes and pylons.
The DS80 and OS80 are installed in an aluminium mounting profile that is mounted into the sign by easy to install mounting clips. The mounting profile can be cut to size and comes in 3 standard lengths.
The DS80 and OS80 have an industry leading efficiency of 165 lumen per Watt. In a typical pylon they can be installed with 400 mm row and module spacing due to the use of flat beam prism lenses. This reduces the energy consumption to less than 22 Watt per square meter per side. Still offering almost 3,600 lumen per square meter per side.
Features
- 5 years warranty
- Lucolense prismatic flat beam technology
- High efficacy
- Constant Current Technology
- Narrow white binning
- Easy installation
Downloads
| Item no | LED colour | CT (K) | CRI | Power (W/mod) | Flux (lm/mod) | Efficacy (lm/W) | Voltage (DC) | Modules in series | Modules per carton |
|---|---|---|---|---|---|---|---|---|---|
| DS80-W65 | white | 6500 | >70 | 4.8 | 792 | 165 | 24 | 20 | 400 |
| OS80-W65 | white | 6500 | >70 | 2.4 | 396 | 165 | 24 | 40 | 400 |
Specifications
- Dimensions: 155 x 38 x 11 mm
- Warranty 5 years
- Beam angle: 170°
- Can be cut between every unit
- UL, CE and RoHS compliant
- Narrow white binning
- Constant Current Technology
- Operating temperature: -25~+60°C
- Easy installation using aluminium profiles and clips

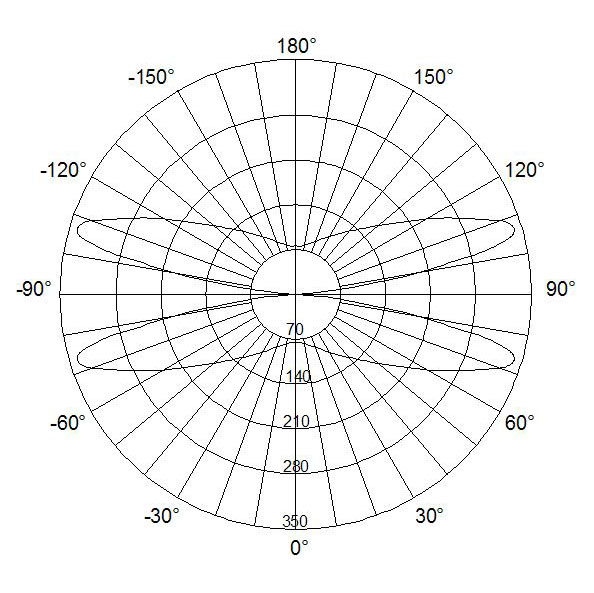

LM Intensity Distribution
